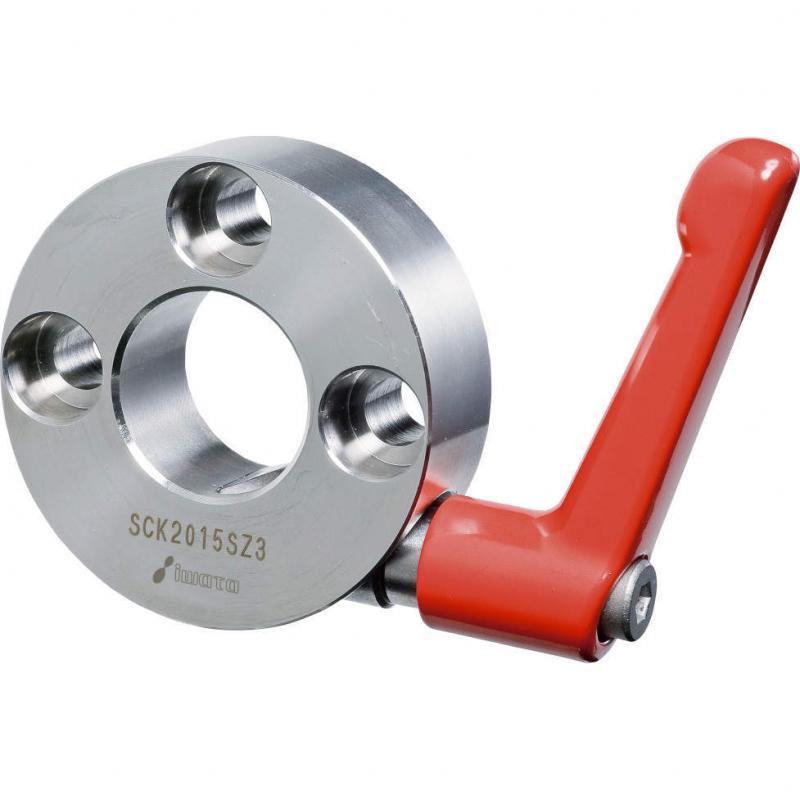

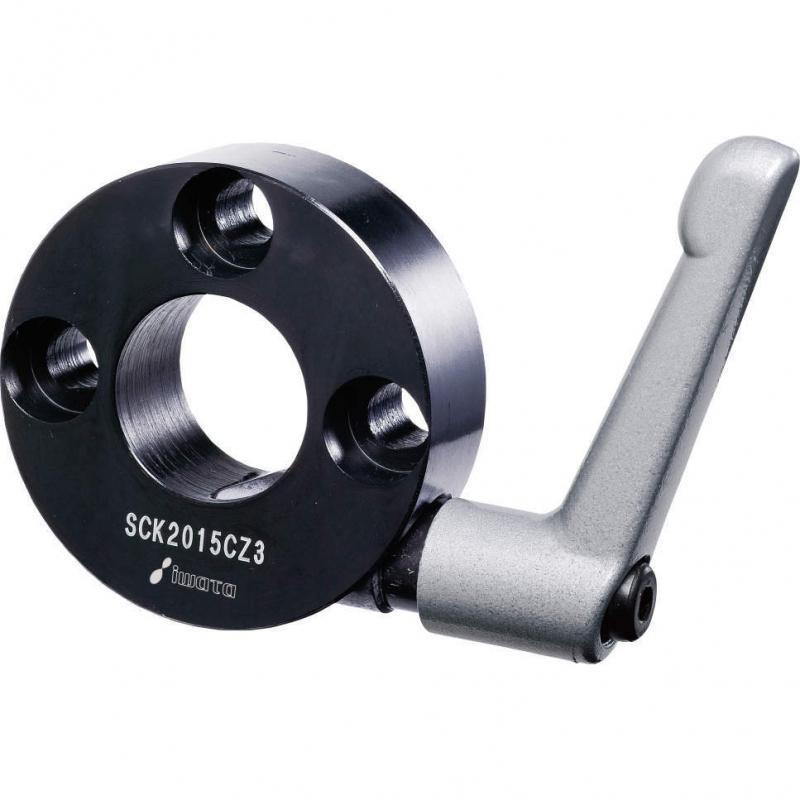

3沉頭孔型(附固定把手) 楔形固定環
【CAD取得、價格・交期確認可】使用特殊形狀的楔子緊固軸。
・使用特殊形狀的楔形構造，以較小的力即可緊固軸。
・可加工性良好，・在軸心頻繁位置調整時非常便利。
・沉頭孔設計，螺絲頭部不會露出。
#固定環#定位
- 型號規格表
左右滑動查看完整表格

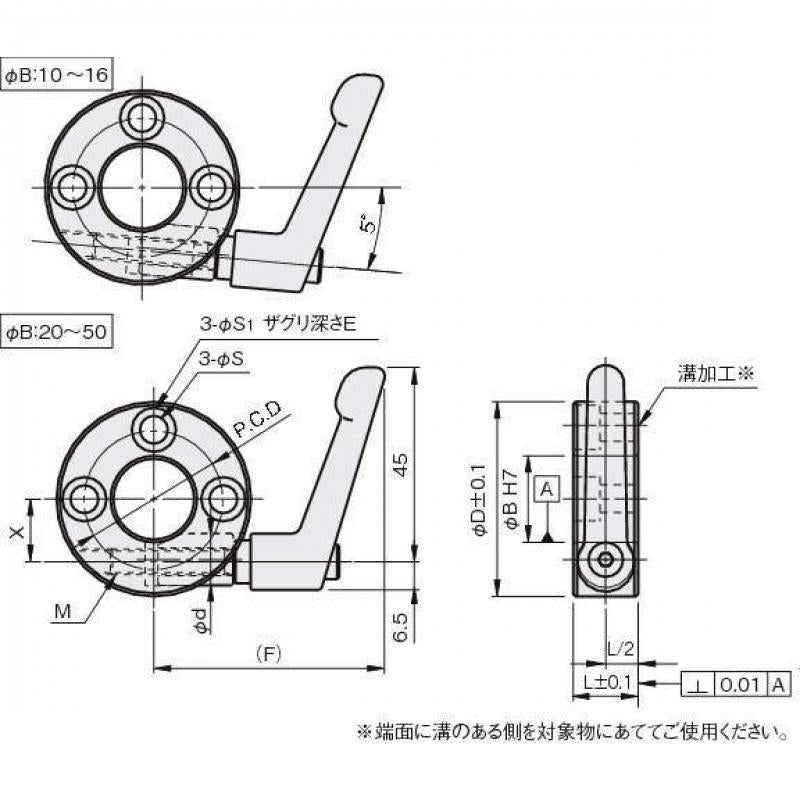

| 型式 | 材質/表面處理 | 內徑 φB | 寬 L | 外徑 φD | φd | X | F | 側孔-φS | 側孔-P.C.D | 側孔-φS1 | 側孔-E | 緊固螺栓 M | 重量 (g) | 參考出貨日 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCK1015CZ3B | 鐵(S45C)/染黑 | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 126 | 10天 |
| SCK1015CZ3O | 鐵(S45C)/染黑 | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 126 | 10天 |
| SCK1015CZ3S | 鐵(S45C)/染黑 | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 126 | 10天 |
| SCK1215CZ3B | 鐵(S45C)/染黑 | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 118 | 10天 |
| SCK1215CZ3O | 鐵(S45C)/染黑 | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 118 | 10天 |
| SCK1215CZ3S | 鐵(S45C)/染黑 | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 118 | 10天 |
| SCK1515CZ3B | 鐵(S45C)/染黑 | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 142 | 10天 |
| SCK1515CZ3O | 鐵(S45C)/染黑 | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 142 | 10天 |
| SCK1515CZ3S | 鐵(S45C)/染黑 | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 142 | 10天 |
| SCK1615CZ3B | 鐵(S45C)/染黑 | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 139 | 10天 |
| SCK1615CZ3O | 鐵(S45C)/染黑 | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 139 | 10天 |
| SCK1615CZ3S | 鐵(S45C)/染黑 | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 139 | 10天 |
| SCK2015CZ3B | 鐵(S45C)/染黑 | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 164 | 10天 |
| SCK2015CZ3O | 鐵(S45C)/染黑 | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 164 | 10天 |
| SCK2015CZ3S | 鐵(S45C)/染黑 | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 164 | 10天 |
| SCK2515CZ3B | 鐵(S45C)/染黑 | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 188 | 10天 |
| SCK2515CZ3O | 鐵(S45C)/染黑 | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 188 | 10天 |
| SCK2515CZ3S | 鐵(S45C)/染黑 | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 188 | 10天 |
| SCK3015CZ3B | 鐵(S45C)/染黑 | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 212 | 10天 |
| SCK3015CZ3O | 鐵(S45C)/染黑 | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 212 | 10天 |
| SCK3015CZ3S | 鐵(S45C)/染黑 | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 212 | 10天 |
| SCK3520CZ3B | 鐵(S45C)/染黑 | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 377 | 10天 |
| SCK3520CZ3O | 鐵(S45C)/染黑 | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 377 | 10天 |
| SCK3520CZ3S | 鐵(S45C)/染黑 | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 377 | 10天 |
| SCK4020CZ3B | 鐵(S45C)/染黑 | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 419 | 10天 |
| SCK4020CZ3O | 鐵(S45C)/染黑 | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 419 | 10天 |
| SCK4020CZ3S | 鐵(S45C)/染黑 | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 419 | 10天 |
| SCK5020CZ3B | 鐵(S45C)/染黑 | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 593 | 10天 |
| SCK5020CZ3O | 鐵(S45C)/染黑 | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 593 | 10天 |
| SCK5020CZ3S | 鐵(S45C)/染黑 | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 593 | 10天 |
| SCK1015SZ3B | 不銹鋼(SUS304) | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 128 | 10天 |
| SCK1015SZ3O | 不銹鋼(SUS304) | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 128 | 10天 |
| SCK1015SZ3S | 不銹鋼(SUS304) | 10 | 15 | 35 | 12.1 | 9.5 | 49.8 | 4.5 | 24 | 7.5 | 4 | M6×25 | 128 | 10天 |
| SCK1215SZ3B | 不銹鋼(SUS304) | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 120 | 10天 |
| SCK1215SZ3O | 不銹鋼(SUS304) | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 120 | 10天 |
| SCK1215SZ3S | 不銹鋼(SUS304) | 12 | 15 | 38 | 12.1 | 10.5 | 50 | 5.5 | 24 | 9 | 5 | M6×25 | 120 | 10天 |
| SCK1515SZ3B | 不銹鋼(SUS304) | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 144 | 10天 |
| SCK1515SZ3O | 不銹鋼(SUS304) | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 144 | 10天 |
| SCK1515SZ3S | 不銹鋼(SUS304) | 15 | 15 | 40 | 12.1 | 12 | 53.4 | 6.6 | 28 | 10.5 | 6 | M6×32 | 144 | 10天 |
| SCK1615SZ3B | 不銹鋼(SUS304) | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 141 | 10天 |
| SCK1615SZ3O | 不銹鋼(SUS304) | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 141 | 10天 |
| SCK1615SZ3S | 不銹鋼(SUS304) | 16 | 15 | 42 | 12.1 | 12 | 54.5 | 6.6 | 28 | 10.5 | 6 | M6×32 | 141 | 10天 |
| SCK2015SZ3B | 不銹鋼(SUS304) | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 167 | 10天 |
| SCK2015SZ3O | 不銹鋼(SUS304) | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 167 | 10天 |
| SCK2015SZ3S | 不銹鋼(SUS304) | 20 | 15 | 46 | 12.1 | 14 | 55 | 6.6 | 34 | 10.5 | 6 | M6×32 | 167 | 10天 |
| SCK2515SZ3B | 不銹鋼(SUS304) | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 190 | 10天 |
| SCK2515SZ3O | 不銹鋼(SUS304) | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 190 | 10天 |
| SCK2515SZ3S | 不銹鋼(SUS304) | 25 | 15 | 50 | 12.1 | 16.5 | 55.6 | 6.6 | 38 | 10.5 | 6 | M6×32 | 190 | 10天 |
| SCK3015SZ3B | 不銹鋼(SUS304) | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 214 | 10天 |
| SCK3015SZ3O | 不銹鋼(SUS304) | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 214 | 10天 |
| SCK3015SZ3S | 不銹鋼(SUS304) | 30 | 15 | 56 | 12.1 | 19 | 59.1 | 6.6 | 44 | 10.5 | 6 | M6×40 | 214 | 10天 |
| SCK3520SZ3B | 不銹鋼(SUS304) | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 382 | 10天 |
| SCK3520SZ3O | 不銹鋼(SUS304) | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 382 | 10天 |
| SCK3520SZ3S | 不銹鋼(SUS304) | 35 | 20 | 65 | 14.1 | 22.5 | 60.7 | 6.6 | 48 | 10.5 | 6 | M6×40 | 382 | 10天 |
| SCK4020SZ3B | 不銹鋼(SUS304) | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 423 | 10天 |
| SCK4020SZ3O | 不銹鋼(SUS304) | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 423 | 10天 |
| SCK4020SZ3S | 不銹鋼(SUS304) | 40 | 20 | 70 | 14.1 | 25 | 65.4 | 6.6 | 56 | 10.5 | 6 | M6×50 | 423 | 10天 |
| SCK5020SZ3B | 不銹鋼(SUS304) | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 598 | 10天 |
| SCK5020SZ3O | 不銹鋼(SUS304) | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 598 | 10天 |
| SCK5020SZ3S | 不銹鋼(SUS304) | 50 | 20 | 85 | 14.1 | 29.5 | 72.7 | 6.6 | 68 | 10.5 | 6 | M6×50 | 598 | 10天 |
