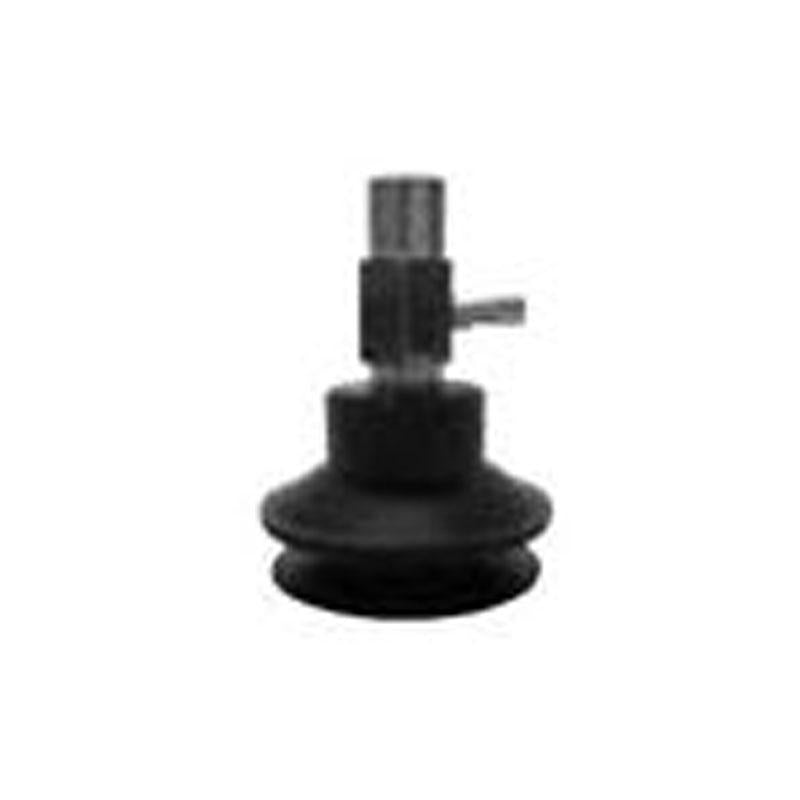

附接頭固定式零件吸盤 PBTK、PBYK
波紋管部具優異耐久性的附零件吸盤。
【特長】
・材質備有合成橡膠、矽膠、優力膠、氟等4種系列產品
・具有導電性，可對應各種吸附
・耐油、耐熱性優異，各種環境皆可使用的附零件吸盤
・具波紋管部分，緩衝性優異
【用途】
・用於球面或有角度的吸附目標物

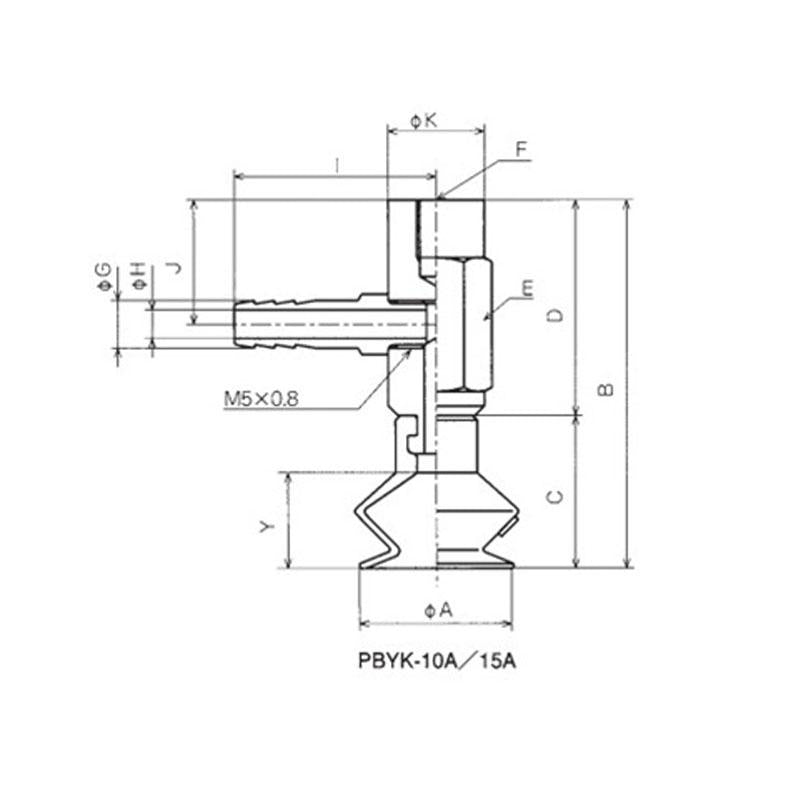

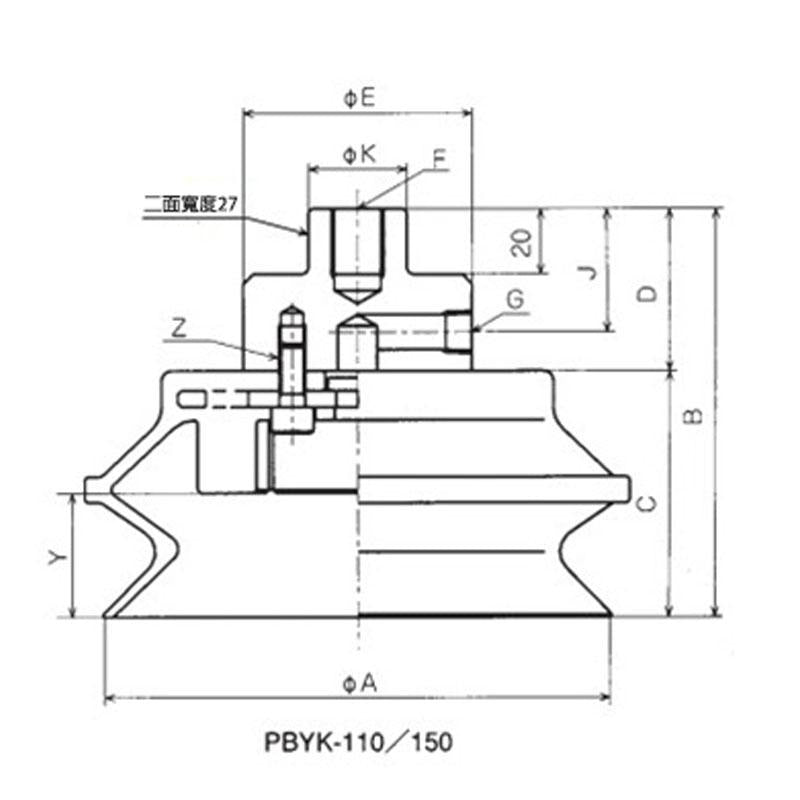

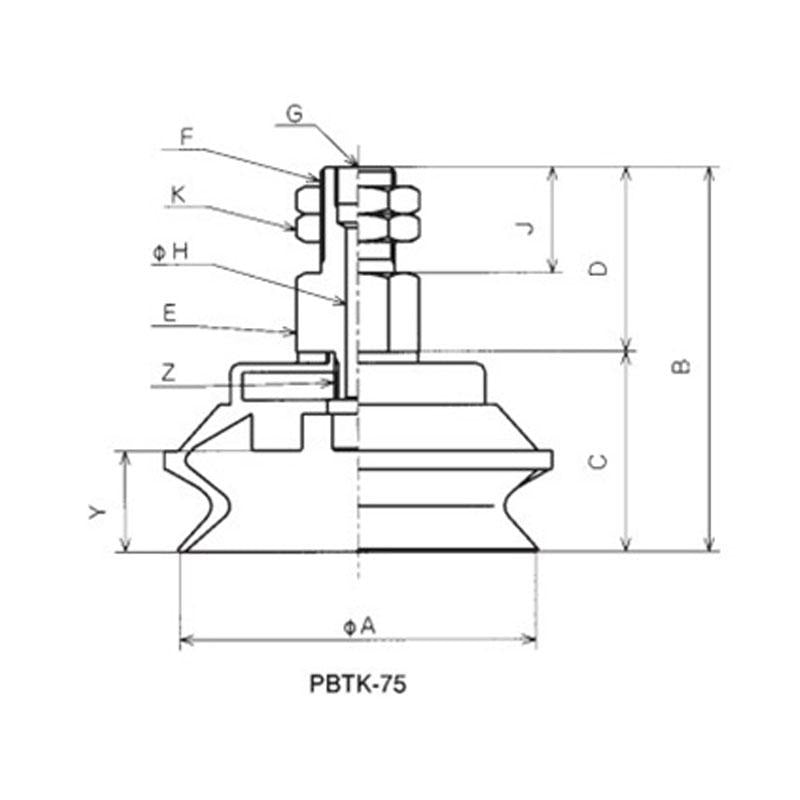

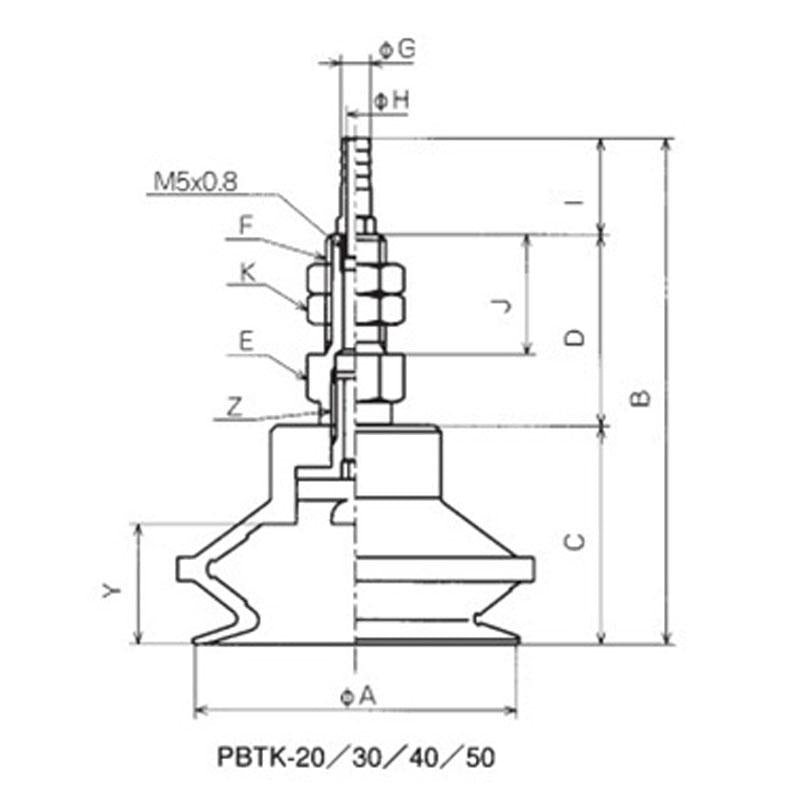

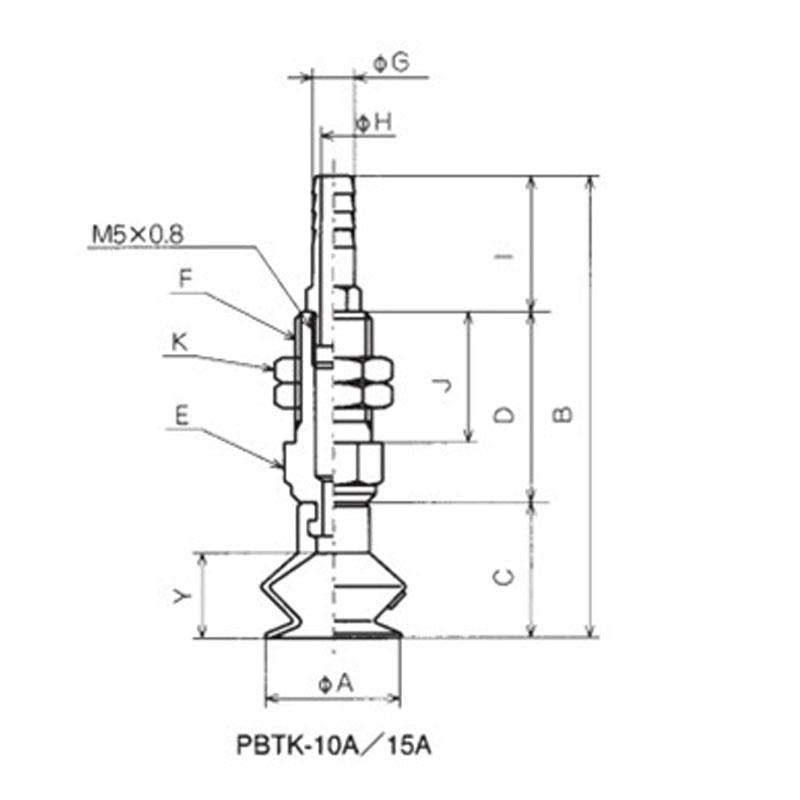

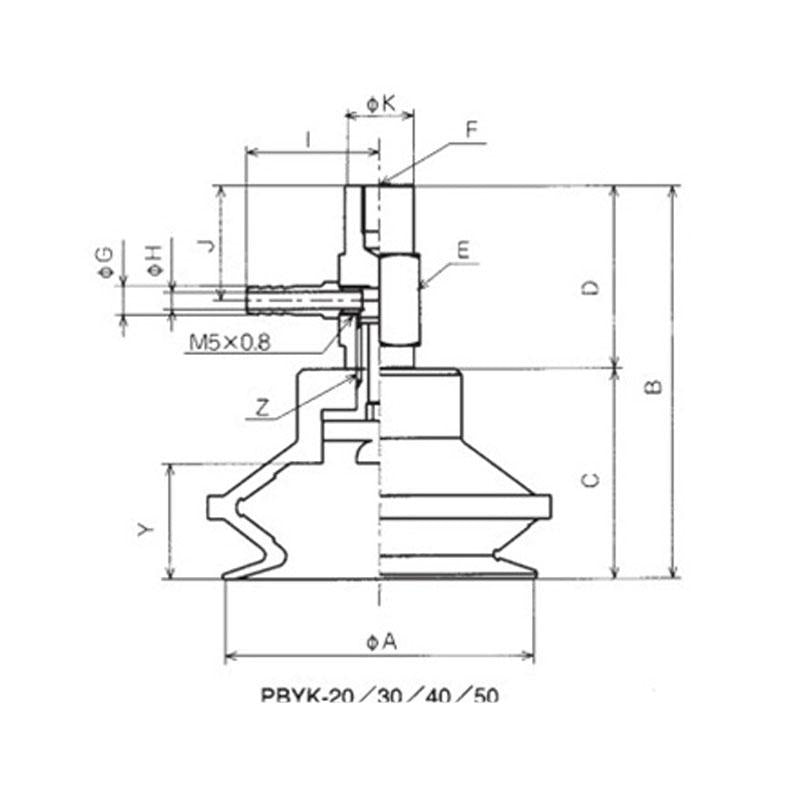

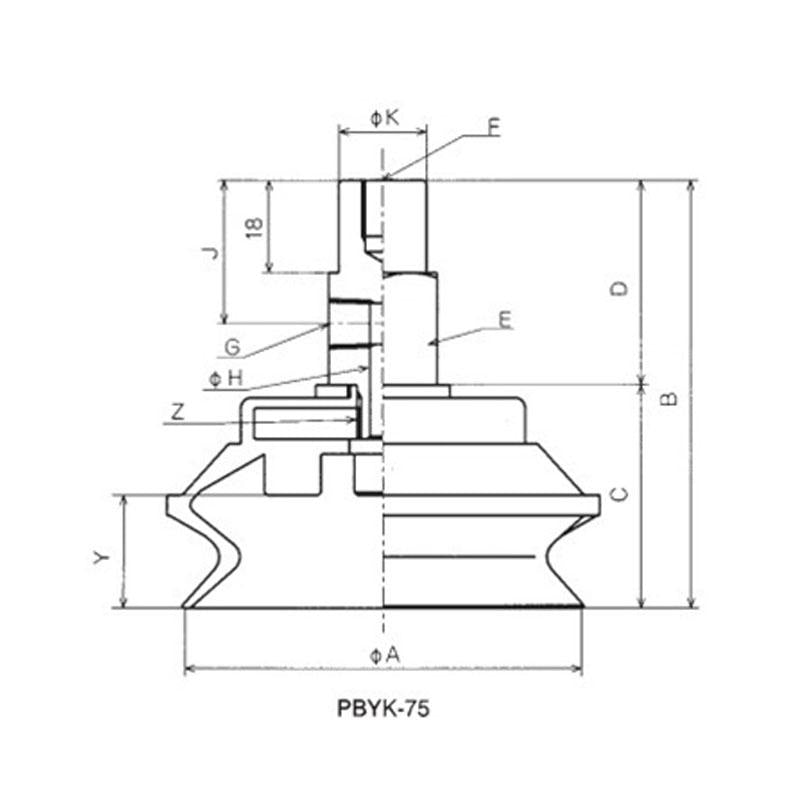

- 型號規格表
左右滑動查看完整表格
| 型號 | A | B | C | D | E | F | G | H | I | J | K | Y | Z | 質量(g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PBTK-10A | 10 | 47 | 13.5 | 22.5 | 10H | M9×1.0 | 5 | 3 | 11 | 15.5 | 12H | 7.5 | - | 15 | |
| PBTK-15A | 15 | 49.5 | 16 | 22.5 | 10H | M9×1.0 | 5 | 3 | 11 | 15.5 | 12H | 10 | - | 15 | |
| PBTK-20 | 20 | 52.5 | 19.5 | 22 | 10H | M8×1.25 | 5 | 3 | 11 | 15 | 10H | 12 | M5×0.8 | 21 | |
| PBTK-30 | 30 | 73.5 | 30.5 | 32 | 14H | M10×1.5 | 5 | 3 | 11 | 20 | 14H | 17 | M6×1.0 | 45 | |
| PBTK-40 | 40 | 73.5 | 30.5 | 32 | 14H | M10×1.5 | 5 | 3 | 11 | 20 | 14H | 15.5 | M6×1.0 | 48 | |
| PBTK-50 | 50 | 79.5 | 36.5 | 32 | 14H | M10×1.5 | 5 | 3 | 11 | 20 | 14H | 20 | M8×1.25 | 62 | |
| PBTK-75 | 75 | 78.5 | 43.5 | 40 | 21H | M16×1.5 | Rc1/8 | 5 | - | 23 | 21H | 22 | M10×1.25 | 186 | |
| PBYK-10A | 10 | 36 | 13.5 | 22.5 | 10H | M4×6 | 5 | 3 | 16 | 13 | 10 | 7.5 | - | 16 | |
| PBYK-15A | 15 | 38.5 | 16 | 22.5 | 10H | M4×6 | 5 | 3 | 16 | 13 | 10 | 10 | - | 16 | |
| PBYK-20 | 20 | 41.5 | 19.5 | 22 | 10H | M4×6 | 5 | 3 | 16 | 14 | 10 | 12 | M5×0.8 | 21 | |
| PBYK-30 | 30 | 62.5 | 30.5 | 32 | 14H | M6×8 | 5 | 3 | 18 | 20 | 12 | 17 | M6×1.0 | 45 | |
| PBYK-40 | 40 | 62.5 | 30.5 | 32 | 14H | M6×8 | 5 | 3 | 18 | 20 | 12 | 15.5 | M6×1.0 | 58 | |
| PBYK-50 | 50 | 68.5 | 36.5 | 32 | 14H | M6×8 | 5 | 3 | 18 | 20 | 12 | 20 | M8×1.25 | 67 | |
| PBYK-75 | 75 | 83.5 | 43.5 | 40 | 21H | M8×11 | Rc1/8 | 5 | - | 28 | 17 | 22 | M10×1.25 | 176 | |
| PBYK-110 | 110 | 106 | 56 | 50 | 64.5 | M16×20 | Rc1/8 | - | - | 38 | 30 | 29 | 4・M8 | 670 | |
| PBYK-150 | 150 | 125 | 75 | 50 | 64.5 | M16×20 | Rc1/8 | - | - | 38 | 30 | 38 | 4・M8 | 1180 |
