真空噴射器組件 MC22系列
真空噴射器組件 MC22系列
真空噴射器組件 MC22系列

真空噴射器組件 MC22系列

CONVUM 妙德

可使用壓縮空氣產生真空的真空噴射器組件 MC22系列。
【特長】

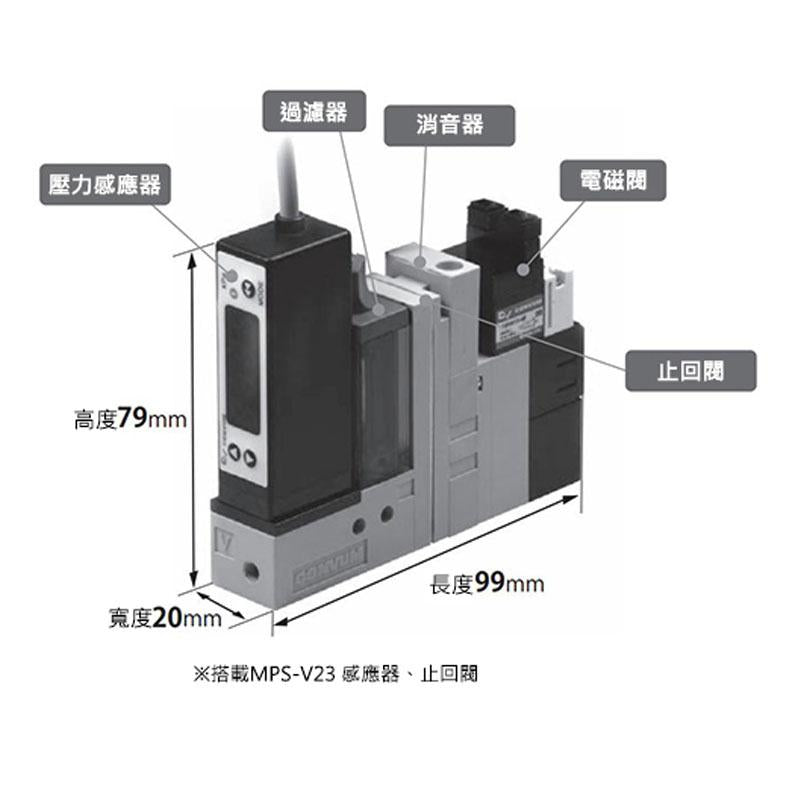

・搭載感應器、電磁閥、破壞功能和過濾器的機型。
・可選擇壓力開關／噴嘴徑。
・採用寬度20mm的樹脂本體並搭載小型電磁閥，實現輕量化。
・可配合使用目的選擇節能回路內建感應器等壓力感應器。

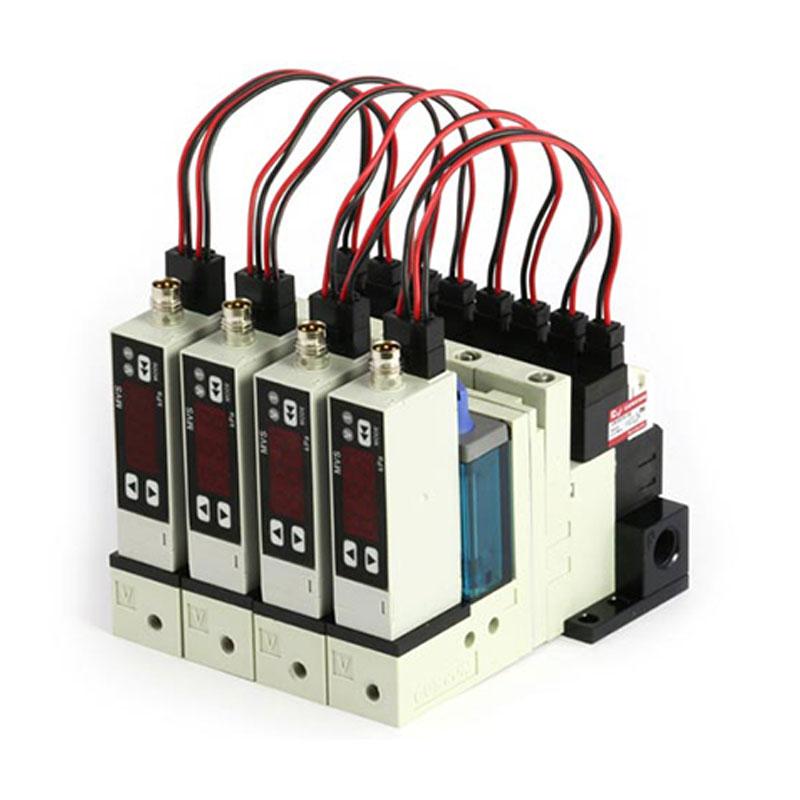

・可藉由歧管塊化集結供給。
・搭載自我保持型電磁閥，在停電等緊急停止時也能維持產生真空。
・防止工件掉落。
・藉由消音器的特殊構造實現低噪音(58dB(A))。
【用途】
・最適合以電磁閥控制的高速輸送。

 前往詢價單
  • 型號規格表
左右滑動查看完整表格
型號附加功能到達真空壓力 (kPa)空氣消耗流量 (l/min)用途使用壓力範圍 (MPa)周圍溫度 (℃)吸入流量 (l/min)噴嘴徑全長 L (mm)詳細型式壓力開關連數（僅在有岐管塊時）搭截組件本體台數（僅在有岐管塊時）組裝方向（僅在有岐管塊時）額定壓力 (MPa)
MC22M05HR21L4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6無止回閥MVS-201---0.35MPa
MC22M05HR21LC4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MVS-201---0.35MPa
MC22M05HR21LC4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MVS-2012連2台-0.35MPa
MC22M05HR21LC4BLR404機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MVS-2014連4台-0.35MPa
MC22M05HR21LC4BLR606機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MVS-2016連6台-0.35MPa
MC22M05HRABSL4BLR202附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MVS-030AB2連2台-0.35MPa
MC22M05HRVGL4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MPS-V23---0.35MPa
MC22M05HRVGL4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MPS-V232連2台-0.35MPa
MC22M05HRVGL4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MPS-V233連3台-0.35MPa
MC22M05HRVGL4BLR404機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MPS-V234連4台-0.35MPa
MC22M05HRVGL4BLR505機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MPS-V235連5台-0.35MPa
MC22M05HRVGL4BLR808機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥MPS-V238連8台-0.35MPa
MC22M05HRVGLC4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MPS-V232連2台-0.35MPa
MC22M05HRVGLC4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5040.5mm97.6帶止回閥MPS-V233連3台-0.35MPa
MC22M05HRZL4BLR無-8710岐管塊0.2～0.50～5040.5mm97.6無止回閥無感應器---0.35MPa
MC22M05HRZL4BLR202無-8710岐管塊0.2～0.50～5040.5mm86.6無止回閥無感應器2連2台-0.35MPa
MC22M05HS21L4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MVS-2012連2台-0.5MPa
MC22M05HS21L4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MVS-2013連3台-0.5MPa
MC22M05HS21LC4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-201---0.35MPa
MC22M05HS21LC4BLR101機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2011連1台-0.5MPa
MC22M05HS21LC4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2012連2台-0.5MPa
MC22M05HS21LC4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2013連3台-0.5MPa
MC22M05HS21LC4BLR404機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2014連4台-0.5MPa
MC22M05HS21LC4BLR505機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2015連5台-0.5MPa
MC22M05HS21LC4BLR808機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2018連8台-0.5MPa
MC22M05HS21LC4BLR817​L機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-2018連7台靠左0.5MPa
MC22M05HSABSL4BLR202附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MVS-030AB2連2台-0.5MPa
MC22M05HSABSL4BLR404附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MVS-030AB4連4台-0.5MPa
MC22M05HSABSL4BLR431​R附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MVS-030AB4連1台靠右0.5MPa
MC22M05HSABSLC4BLR20​2附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-030AB2連2台-0.5MPa
MC22M05HSABSLC4BLR40​4附LED顯示真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MVS-030AB4連4台-0.5MPa
MC22M05HSVGL4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6無止回閥MPS-V23---0.35MPa
MC22M05HSVGL4BLR101機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V231連1台-0.5MPa
MC22M05HSVGL4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V232連2台-0.5MPa
MC22M05HSVGL4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V233連3台-0.5MPa
MC22M05HSVGL4BLR404機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V234連4台-0.5MPa
MC22M05HSVGL4BLR413R機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V234連3台靠右0.5MPa
MC22M05HSVGL4BLR505機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V235連5台-0.5MPa
MC22M05HSVGL4BLR606機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V236連6台-0.5MPa
MC22M05HSVGL4BLR707機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V237連7台-0.5MPa
MC22M05HSVGL4BLR808機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥MPS-V238連8台-0.5MPa
MC22M05HSVGLC4BLR機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V23---0.35MPa
MC22M05HSVGLC4BLR202機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V232連2台-0.5MPa
MC22M05HSVGLC4BLR303機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V233連3台-0.5MPa
MC22M05HSVGLC4BLR404機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V234連4台-0.5MPa
MC22M05HSVGLC4BLR505機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V235連5台-0.5MPa
MC22M05HSVGLC4BLR808機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V238連8台-0.5MPa
MC22M05HSVGLC4BLR835​L機械真空用壓力開關-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥MPS-V238連5台靠左0.5MPa
MC22M05HSZL4BLR無-8710岐管塊0.2～0.50～5060.5mm97.6無止回閥無感應器---0.35MPa
MC22M05HSZL4BLR202無-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥無感應器2連2台-0.5MPa
MC22M05HSZL4BLR303無-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥無感應器3連3台-0.5MPa
MC22M05HSZL4BLR404無-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥無感應器4連4台-0.5MPa
MC22M05HSZL4BLR606無-8710岐管塊0.2～0.50～5060.5mm86.6無止回閥無感應器6連6台-0.5MPa
MC22M05HSZLC4BLR無-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥無感應器---0.35MPa
MC22M05HSZLC4BLR404無-8710岐管塊0.2～0.50～5060.5mm97.6帶止回閥無感應器4連4台-0.5MPa
MC22M05LS21LC4BLR303機械真空用壓力開關-5310岐管塊0.2～0.50～50110.5mm97.6帶止回閥MVS-2013連3台-0.5MPa
MC22M05LSVGL4BLR303機械真空用壓力開關-5310岐管塊0.2～0.50～50110.5mm86.6無止回閥MPS-V233連3台-0.5MPa
MC22M05LSVGL4BLR514L機械真空用壓力開關-5310岐管塊0.2～0.50～50110.5mm86.6無止回閥MPS-V235連4台靠左0.5MPa
MC22M07HR21L4BLR404機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥MVS-2014連4台-0.35MPa
MC22M07HR21LC4BLR機械真空用壓力開關-8748岐管塊0.2～0.50～50200.7mm97.6帶止回閥MVS-201---0.35MPa
MC22M07HR21LC4BLR202機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥MVS-2012連2台-0.35MPa
MC22M07HR21LC4BLR404機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥MVS-2014連4台-0.35MPa
MC22M07HR21LC4BLR606機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥MVS-2016連6台-0.35MPa
MC22M07HRABSL4BLR404附LED顯示真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥MVS-030AB4連4台-0.35MPa
MC22M07HRVGL4BLR202機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥MPS-V232連2台-0.35MPa
MC22M07HRVGL4BLR808機械真空用壓力開關-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥MPS-V238連8台-0.35MPa
MC22M07HRVGLC4BLR機械真空用壓力開關-8748岐管塊0.2～0.50～50200.7mm97.6帶止回閥MPS-V23---0.35MPa
MC22M07HRZL4BLR202無-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥無感應器2連2台-0.35MPa
MC22M07HRZL4BLR303無-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥無感應器3連3台-0.35MPa
MC22M07HRZL4BLR404無-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥無感應器4連4台-0.35MPa
MC22M07HRZL4BLR505無-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥無感應器5連5台-0.35MPa
MC22M07HRZL4BLR606無-8722.5岐管塊0.2～0.50～5090.7mm86.6無止回閥無感應器6連6台-0.35MPa
MC22M07HRZLC4BLR無-8748岐管塊0.2～0.50～50200.7mm97.6帶止回閥無感應器---0.35MPa
MC22M07HRZLC4BLR202無-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥無感應器2連2台-0.35MPa
MC22M07HRZLC4BLR413R無-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥無感應器4連3台靠右0.35MPa
MC22M07HRZLC4BLR606無-8722.5岐管塊0.2～0.50～5090.7mm97.6帶止回閥無感應器6連6台-0.35MPa
MC22M07HS21L4BLR202機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MVS-2012連2台-0.5MPa
MC22M07HS21L4BLR505機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MVS-2015連5台-0.5MPa
MC22M07HS21LC4BLR機械真空用壓力開關-8748岐管塊0.2～0.50～50200.7mm97.6帶止回閥MVS-201---0.5MPa
MC22M07HS21LC4BLR101機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2011連1台-0.5MPa
MC22M07HS21LC4BLR202機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2012連2台-0.5MPa
MC22M07HS21LC4BLR211​L機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2012連1台靠左0.5MPa
MC22M07HS21LC4BLR211​R機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2012連1台靠右0.5MPa
MC22M07HS21LC4BLR303機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2013連3台-0.5MPa
MC22M07HS21LC4BLR404機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2014連4台-0.5MPa
MC22M07HS21LC4BLR505機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2015連5台-0.5MPa
MC22M07HS21LC4BLR606機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2016連6台-0.5MPa
MC22M07HS21LC4BLR808機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-2018連8台-0.5MPa
MC22M07HSABSL4BLR附LED顯示真空用壓力開關-8748岐管塊0.2～0.50～50200.7mm97.6無止回閥MVS-030AB---0.35MPa
MC22M07HSABSL4BLR202附LED顯示真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MVS-030AB2連2台-0.5MPa
MC22M07HSABSL4BLR211​R附LED顯示真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MVS-030AB2連1台靠右0.5MPa
MC22M07HSABSLC4BLR30​3附LED顯示真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-030AB3連3台-0.5MPa
MC22M07HSABSLC4BLR31​2L附LED顯示真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm97.6帶止回閥MVS-030AB3連2台靠左0.5MPa
MC22M07HSVGL4BLR機械真空用壓力開關-8748岐管塊0.2～0.50～50200.7mm97.6無止回閥MPS-V23---0.35MPa
MC22M07HSVGL4BLR101機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V231連1台-0.5MPa
MC22M07HSVGL4BLR202機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V232連2台-0.5MPa
MC22M07HSVGL4BLR211L機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V232連1台靠左0.5MPa
MC22M07HSVGL4BLR303機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V233連3台-0.5MPa
MC22M07HSVGL4BLR404機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V234連4台-0.5MPa
MC22M07HSVGL4BLR413R機械真空用壓力開關-8722.5岐管塊0.2～0.50～50110.7mm86.6無止回閥MPS-V234連3台靠右0.5MPa

顯示前 100 筆（共 306 筆），完整資料請洽詢。
